9208 - 9660STS and 9760STS Self-Propelled Combines (North American Edition) - 30Aug18
95 - AIR CONDITIONING AND HEATING( КОНДИЦИОНИРОВАНИЕ ВОЗДУХА И ОТОПЛЕНИЕ)

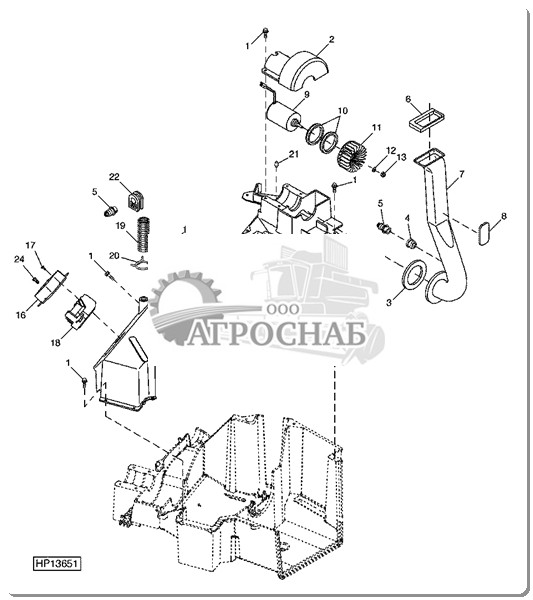

Air Conditioning And Heater Housing, Upper ( - 720300)(Кондиционер И Нагреватель Корпус Верхний )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | 19M7862 | Screw | AR | X | X | M6 X 20 | |
| 19M7796 | Screw | AR | X | X | M6 X 30 | ||
| 2 | H115031 | Cover | 1 | X | X | ||
| 3 | H163397 | Seal | 1 | X | X | ||
| 4 | H159144 | Grommet | 1 | X | X | ||
| 5 | RE65815 | Sensor | 2 | X | X | (A) | |
| 6 | H207182 | Seal | 1 | X | X | ||
| 7 | H166179 | Air Duct | 1 | X | X | ||
| 8 | H119187 | Pad | 1 | X | X | ||
| 9 | AH167731 | Blower Motor | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 10 | H115521 | Isolator | 2 | X | X | ||
| 11 | H124185 | Fan | 1 | X | X | ||
| 12 | 24M7117 | Washer | AR | X | X | 4.300 X 9 X 0.800 mm | |
| 13 | 14M7264 | Lock Nut | AR | X | X | M4 | |
| 14 | AH163596 | Housing | 1 | X | X | ||
| 15 | H168986 | Housing | 1 | X | X | ||
| 16 | H169087 | Frame | 1 | X | X | ||
| 17 | 37M7067 | Screw | 3 | X | X | ||
| 18 | AH215142 | Driver | 1 | X | X | (SUB FOR RE184271) | |
| 19 | H164702 | Conduit | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 20 | TY22467 | Clamp | 2 | X | X | ||
| 21 | H129887 | Absorber | 1 | X | X | ||
| 22 | H170833 | Grommet | 1 | X | X | ||
| 23 | AH89557 | Clip | 1 | X | X | ||
| 24 | 21M7250 | Screw | 2 | X | X | M4 X 12 |

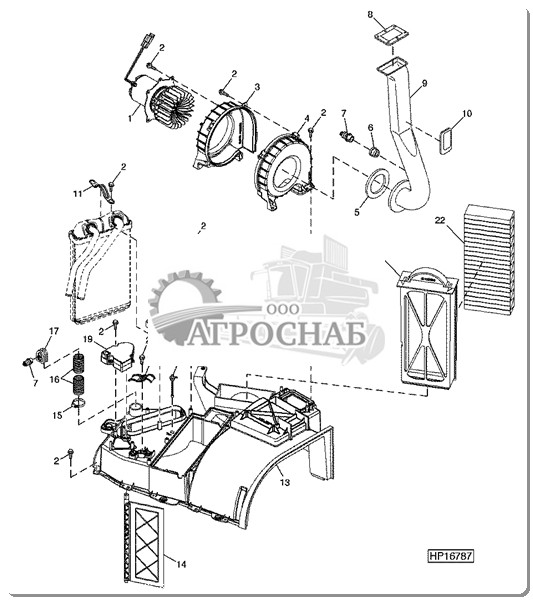

Air Conditioning And Heater Housing, Upper (720301 - )(Кондиционер И Нагреватель Корпус Верхний )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH222796 | Blower | 1 | ||||
| 2 | 37M7418 | Screw | AR | ||||
| 3 | H220876 | Housing | 1 | ||||
| 4 | H220877 | Housing | 1 | ||||
| 5 | H163397 | Seal | 1 | ||||
| 6 | H159144 | Grommet | 1 | ||||
| 7 | RE65815 | Sensor | 2 | ||||
| 8 | AH202350 | Pad | 1 | ||||
| 9 | H166179 | Air Duct | 1 | ||||
| 10 | H207182 | Seal | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | H220873 | Clamp | 1 | ||||
| 12 | H220919 | Cover | 1 | ||||
| 13 | H220860 | Housing | 1 | ||||
| 14 | AH220405 | Door | 1 | ||||
| 15 | TY22467 | Clamp | 2 | ||||
| 16 | H219799 | Hose | 1 | ||||
| 17 | H170833 | Grommet | 1 | ||||
| 18 | H220874 | Clamp | 1 | ||||
| 19 | AH208584 | Actuator | 1 | ||||
| 20 | AH219848 | Sensor | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 21 | H220862 | Cover | 1 | ||||
| 22 | H220870 | Air Filter | 1 |

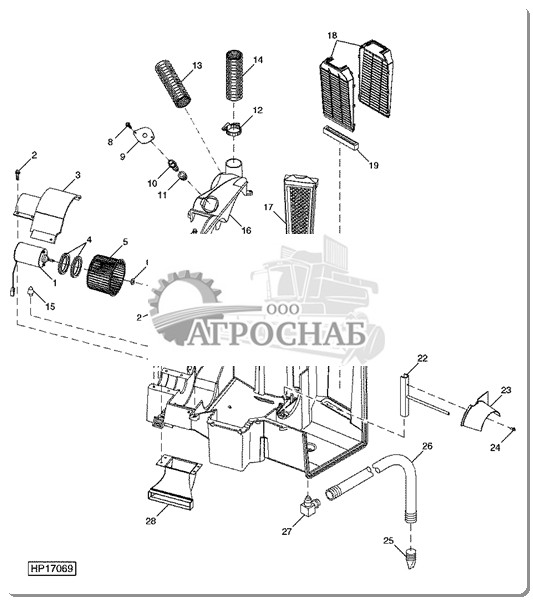

Air Conditioning And Heater Housing, Lower ( - 720300)(Кондиционер И Обогреватель Жилье Ниже )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH155852 | Blower Motor | 1 | X | X | ||
| 2 | 19M7862 | Screw | AR | X | X | M6 X 20 | |
| 3 | H126590 | Cover | 1 | X | X | ||
| 4 | H115521 | Isolator | 2 | X | X | ||
| 5 | H228178 | Blower Fan | 1 | X | X | (SUB FOR H114046) | |
| 6 | 24M7117 | Washer | AR | X | X | 4.300 X 9 X 0.800 mm | |
| 7 | 14M7264 | Lock Nut | AR | X | X | M4 | |
| 8 | H123998 | Screw | AR | X | X | ||
| 9 | H153349 | Plate | 1 | X | X | ||
| 10 | RE65815 | Sensor | 1 | X | X | (A) | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | R159807 | Grommet | 1 | X | X | ||
| 12 | AR21999 | Hose Clamp | 2 | X | X | ||
| 13 | H118871 | Conduit | 1 | X | X | ||
| 14 | H118872 | Conduit | 1 | X | X | ||
| 15 | H129887 | Absorber | AR | X | X | ||
| 16 | H173793 | Housing | 1 | X | X | ||
| 17 | AH115836 | Air Filter | 1 | X | X | ||
| 18 | H177592 | Housing | 2 | X | X | ||
| 19 | H118619 | Seal | 1 | X | X | ||
| 20 | H119362 | Insert | 21 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 21 | AH163317 | Housing | 1 | X | X | (INCLUDES H119362) | |
| 22 | AH134884 | Support | 1 | X | X | ||
| 23 | H127978 | Dust Shield | 1 | X | X | ||
| 24 | 37M7089 | Screw | AR | X | X | M6 X 12 | |
| 25 | H150385 | Check Valve | 1 | X | X | ||
| 26 | H159636 | Tube | 1 | X | X | ||
| 27 | H146429 | Fitting | 1 | X | X | ||
| 28 | H126589 | Air Duct | 1 | X | X |

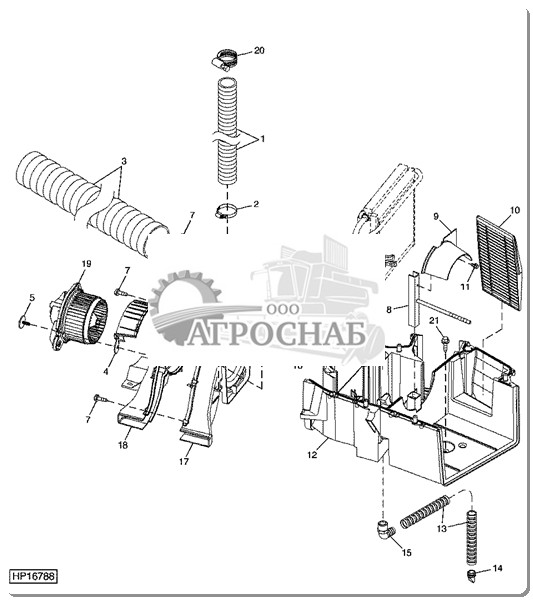

Air Conditioning And Heater Housing, Lower (720301 - )(Кондиционер И Обогреватель Жилье Ниже )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | H118872 | Conduit | 1 | ||||
| 2 | AR21999 | Hose Clamp | 1 | ||||
| 3 | H118871 | Conduit | 1 | ||||
| 4 | H220865 | Cover | 1 | ||||
| 5 | AH220408 | Screw | 3 | ||||
| 6 | AH220285 | Module | 1 | ||||
| 7 | 37M7418 | Screw | AR | ||||
| 8 | AH134884 | Support | 1 | ||||
| 9 | H127978 | Dust Shield | 1 | ||||
| 10 | H220869 | Housing | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | 37M7089 | Screw | 1 | M6 X 12 | |||
| 12 | H220859 | Housing | 1 | ||||
| 13 | H159636 | Tube | 1 | ||||
| 14 | H150385 | Check Valve | 1 | ||||
| 15 | H146429 | Fitting | 1 | ||||
| 16 | AH219847 | Sensor | 1 | ||||
| 17 | H220879 | Air Duct | 1 | ||||
| 18 | H220878 | Air Duct | 1 | ||||
| 19 | AH220407 | Motor | 1 | ||||
| 20 | TY22467 | Clamp | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 21 | 37M7131 | Screw | 2 | M6 X 20 |

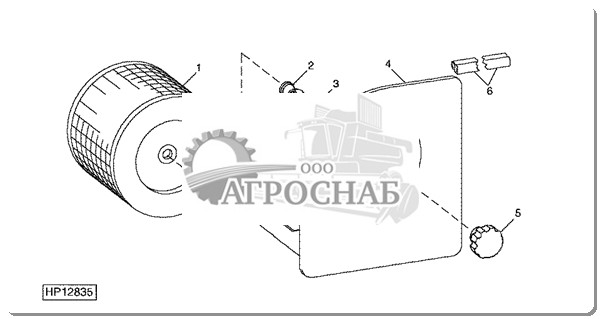

Cab Air Filter And Housing(Воздушный Фильтр Кабины И Жилье)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH115833 | Air Filter | 1 | X | X | ||
| AH168783 | Air Filter | 1 | X | X | (C) | ||
| 2 | AH132783 | Nut | 1 | X | X | M10 | |
| 3 | R58806 | Snap Ring | 1 | X | X | ||
| 4 | AH207302 | Door | 1 | X | X | ||
| 5 | AH120446 | Knob | 1 | X | X | (A) | |
| AH218090 | Knob | 1 | X | X | (B) | ||
| 6 | AH80335 | Weatherstrip | 1 | X | X |

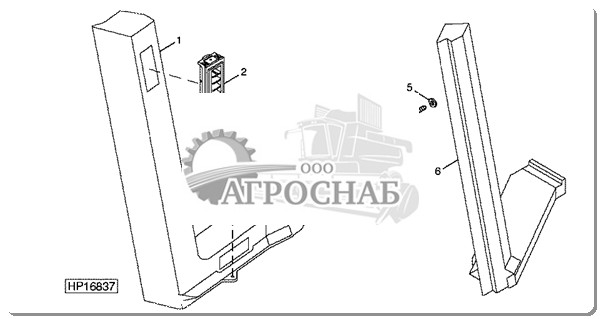

Air Conditioning and Heater Ducts(Кондиционер и отопитель воздуховоды)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | H168870 | Air Duct | 1 | X | X | RH | |
| 2 | AH149228 | Louver | 6 | X | X | ||
| 3 | 37M7160 | Screw | 1 | X | X | M6 X 16 | |
| 4 | H165691 | Screw | 1 | X | X | ||
| 5 | H91315 | Washer | 1 | X | X | ||
| 6 | H168871 | Housing | 1 | X | X | LH | |
| 7 | 24M7251 | Washer | 1 | X | X | 6.400 X 18 X 1.600 mm |

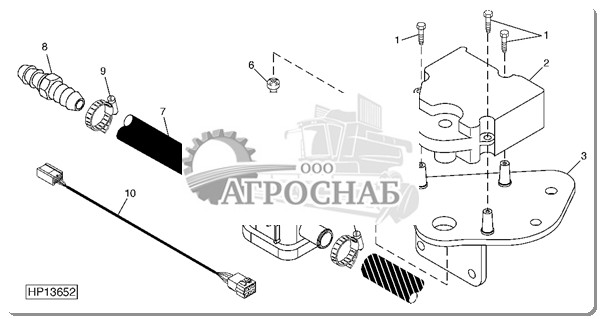

Air Conditioning System - Water Valve Assembly(Система Кондиционирования Воздуха Клапан Воды )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | 37H43 | Screw | 5 | X | X | ||
| 2 | AT363217 | Actuator | 1 | X | X | SUB FOR AH208584 | |
| 3 | H163391 | Bracket | 1 | X | X | ||
| 4 | RE154318 | Valve | 1 | X | X | ||
| 5 | R154320 | Adapter | 1 | X | X | ||
| 6 | H110842 | Screw | 1 | X | X | ||
| 7 | H153889 | Hose | 1 | X | X | ||
| 8 | H153721 | Coupling | 1 | X | X | ||
| 9 | TY22467 | Clamp | 3 | X | X | SUB FOR AT18904 | |
| 10 | AH211769 | Wiring Harness | 1 | X | X | (A) (SUB FOR AH208456) |

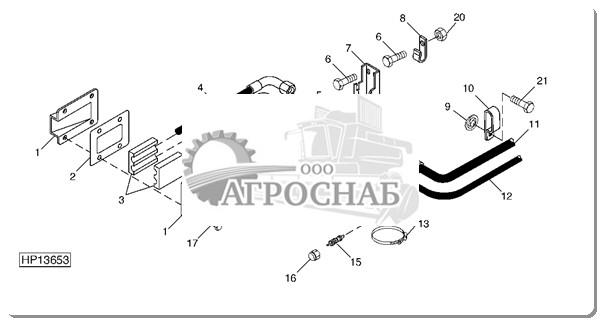

Air Conditioning System - Receiver-Dryer(Система Кондиционирования Воздуха ReceiverDryer)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | H129606 | Retainer | 2 | X | X | ||
| 2 | H114525 | Gasket | 1 | X | X | ||
| 3 | H114523 | Seal | 2 | X | X | ||
| 4 | AH127685 | Hose | 1 | X | X | ||
| 5 | R33259 | O-Ring | 1 | X | X | ||
| 6 | 19M7865 | Screw | 4 | X | X | M8 X 16 | |
| 7 | H136541 | Hose Support | 1 | X | X | ||
| 8 | AH77724 | Clip | 1 | X | X | ||
| 9 | M84309 | Nut | 5 | X | X | ||
| 10 | AH77869 | Clip | 5 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | AH147295 | Hose | 1 | X | X | (A) | |
| AH220926 | Hose | 1 | X | X | (B) SUB FOR AH213889; ALSO ORDER AH220928 AND H221717 | ||
| 12 | AH147296 | Hose | 1 | X | X | (A) | |
| AH220930 | Hose | 1 | X | X | (B) SUB FOR AH213891 | ||
| 13 | AR21842 | Clamp | 2 | X | X | ||
| 14 | R10093 | O-Ring | 2 | X | X | ||
| 15 | R60170 | Valve | 1 | X | X | ||
| 16 | R120955 | Cap | 1 | X | X | (C) | |
| R120956 | Cap | 1 | X | X | (D) | ||
| 17 | 37M7090 | Screw | 4 | X | X | M6 X 16 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 18 | AXE53638 | Receiver-Dryer | 1 | X | X | SUB FOR AH234099 | |
| 19 | AH127684 | Hose | 1 | X | X | ||
| 20 | 14M7298 | Flange Nut | 4 | X | X | M8 | |
| 21 | 19M7866 | Screw | 5 | X | X | M8 X 20 |

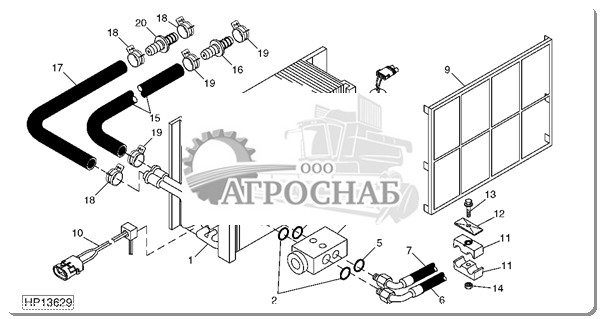

Air Conditioning System - Evaporator Heater ( - 720300)(Система Кондиционирования Воздуха Нагреватель Испарителя )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH150260 | Heat Exchanger | 1 | X | X | ||
| 2 | R33259 | O-Ring | 2 | X | X | ||
| 3 | R113050 | O-Ring | 1 | X | X | ||
| 4 | AH203871 | Valve | 1 | X | X | ||
| 5 | R10093 | O-Ring | 1 | X | X | ||
| 6 | AH127685 | Hose | 1 | X | X | ||
| 7 | AH127684 | Hose | 1 | X | X | ||
| 8 | AH144084 | Switch | 1 | X | X | (A) | |
| 9 | AH120547 | Filter | 1 | X | X | ||
| 10 | RE65814 | Sensor | 1 | X | X | (B) | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | H156670 | Clamp | 2 | X | X | ||
| 12 | H121166 | Plate | 1 | X | X | ||
| 13 | 19M7270 | Cap Screw | 1 | X | X | M8 X 65 | |
| 14 | 14M7298 | Flange Nut | 1 | X | X | M8 | |
| 15 | ...... | Hose | 1 | X | X | CTL 1800 mm, MF TY22330 | |
| 16 | H153722 | Coupling | 1 | X | X | ||
| 17 | H153888 | Hydraulic Hose | 1 | X | X | ||
| 18 | H156923 | Clamp | 3 | X | X | ||
| 19 | RE156922 | Hose Clamp | 3 | X | X | SUB FOR H156922 | |
| 20 | H153721 | Coupling | 1 | X | X |

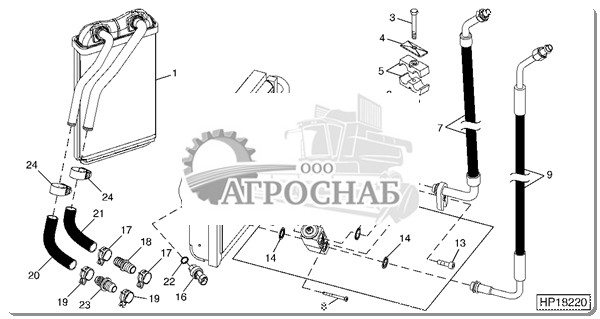

Air Conditioning System - Evaporator Heater (720301 - )(Система Кондиционирования Воздуха Нагреватель Испарителя )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AXE16728 | Heat Exchanger | 1 | SUB FOR AH220429) | |||
| 2 | AH220404 | Evaporator | 1 | ||||
| 3 | 19M7270 | Cap Screw | 1 | M8 X 65 | |||
| 4 | H121166 | Plate | 1 | ||||
| 5 | H156670 | Clamp | 2 | ||||
| 6 | 14M7298 | Flange Nut | 1 | M8 | |||
| 7 | AH220442 | Refrigerant Hose | 1 | INCLUDES AH222795 | |||
| 8 | H220863 | Screw | 2 | ||||
| 9 | AH220441 | Hose | 1 | INCLUDES AH220424 | |||
| 10 | AH222255 | Valve | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | AH220426 | Sealing Washer | 1 | ||||
| 12 | AH222795 | Sealing Washer | 1 | ||||
| 13 | 19M8439 | Screw | 1 | M8 X 25 | |||
| 14 | AH220424 | Sealing Washer | 2 | ||||
| 15 | ...... | Valve | 1 | ||||
| 16 | AH222257 | Switch | 1 | SUB FOR APPL AH219849 | |||
| 17 | H156923 | Hose Clamp | 2 | ||||
| 18 | H153721 | Coupling | 1 | ||||
| 19 | R191781 | Hose Clamp | 2 | SUB FOR RE527586 | |||
| 20 | H219798 | Hose | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 21 | H219800 | Hose | 1 | ||||
| 22 | H220918 | O-Ring | 1 | ||||
| 23 | H153722 | Coupling | 1 | ||||
| 24 | TY22467 | Clamp | 2 | SUB FOR AT18904 |
Air Conditioning Compressor(Компрессор Кондиционера )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | RE52454 | Compressor | 1 | X | X | (A) | |
| 2 | RE51052 | Manifold | 1 | X | X | (B) | |
| .. | R115742 | Seal | 1 | X | X | ||
| .. | TY22101 | Oil | 1 | X | X | ||
| .. | TY15949 | Refrigerant | 1 | X | X | 12 LBS | |
| .. | TY15950 | Refrigerant | 1 | X | X | 15 LBS | |
| .. | TY15951 | Refrigerant | 1 | X | X | 30 LBS | |
| .. | AH169875 | Compressor | 1 | X | X | (C) | |
| .. | TY6764 | Compressor | 1 | X | X | (D) |

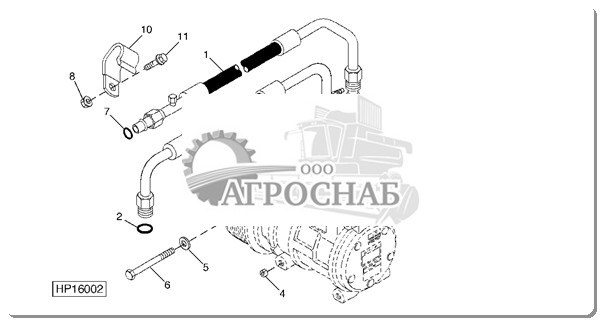

Air Conditioning Compressor Hose(Кондиционер Компрессор Шланг)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH146981 | Hose | 1 | X | X | (A) | |
| AH220930 | Hose | 1 | X | X | (B) SUB FOR AH213891 | ||
| 2 | R33259 | O-Ring | 2 | X | X | ||
| 3 | R113050 | O-Ring | 1 | X | X | ||
| 4 | 34M7189 | Spring Pin | 3 | X | X | 11 X 8 mm | |
| 5 | 24M7238 | Washer | 3 | X | X | 8.700 X 17 X 2 mm | |
| 6 | 19M7913 | Screw | 3 | X | X | M8 X 90 | |
| 7 | P51212 | O-Ring | 1 | X | X | ||
| 8 | 14M7298 | Flange Nut | 3 | X | X | M8 | |
| 9 | AH147295 | Hose | 1 | X | X | (A) | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| AH220926 | Hose | 1 | X | X | (B) SUB FOR AH213889; ALSO ORDER AH220928 AND H221717 | ||
| 10 | AH90990 | Clip | 2 | X | X | (B) | |
| 11 | 19M7866 | Screw | 2 | X | X | M8 X 20 |

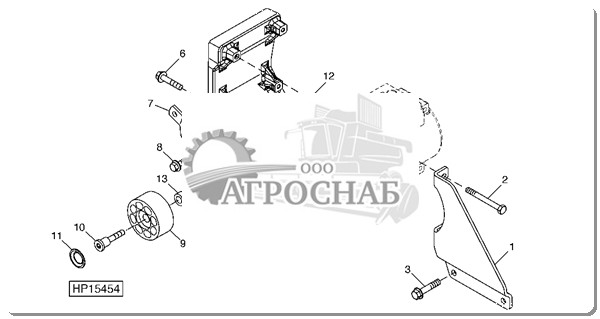

Air Conditioning Compressor Bracket (715401 - )(Кондиционер Компрессор Кронштейн )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | H213225 | Bracket | 1 | X | X | ||
| 2 | 19M7913 | Screw | 2 | X | X | M8 X 90 | |
| 3 | 19M7807 | Screw | 2 | X | X | M10 X 60 | |
| 4 | H213224 | Support | 1 | X | X | ||
| H219730 | Support | 1 | X | X | (A) | ||
| 5 | 19M8292 | Screw | 1 | X | X | M10 X 50 | |
| 6 | 19M8292 | Screw | 2 | X | X | M10 X 50 | |
| 7 | H213603 | Strap | 1 | X | X | ||
| 8 | 19M7786 | Screw | 1 | X | X | M10 X 30 | |
| 9 | RE505265 | Idler | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 10 | R130589 | Screw | 1 | X | X | ||
| 11 | R99590 | Cover | 1 | X | X | ||
| 12 | 34M7189 | Spring Pin | 2 | X | X | 11 X 8 mm | |
| 13 | H213604 | Spacer | 1 | X | X |
